Evernote Installation Guide using Intune

In this post, we will go through Evernote Installation using Intune. Let’s look at the steps to deploy Evernote using Intune; we will use the EXE file to deploy on the Windows 10/11 client machines.

An application called Evernote is used for taking notes and managing tasks. The application allows you to archive and create notes containing photos, audio, and stored web content. Evernote gives you everything you need to keep life organized.

In addition to its Android, iOS, macOS, and Windows clients, Evernote also provides a web client. The service is free to use, but there are monthly usage limits, and paid plans are available if you want limits expanded or lifted.

Windows users can store and edit notes using an SQLite database using Evernote on supported operating systems. Those with an Evernote account and Internet access can have their notes automatically synchronized with a master copy on Evernote’s servers.

Patch My PC

You can easily and directly download the Evernote Application from the official Evernote. Evernote offers various installation options for the desktop application, and here you need to download the windows based setup of the Evernote Application.

Prepare Evernote Installer for Intune Deployment

Preparing a Win32 app using the Microsoft Win32 Content Prep Tool is necessary before adding it to Microsoft Intune. To pre-process Windows classic (Win32) applications, you use the Microsoft Win32 Content Prep Tool.

Adaptiva

Let’s first identify the command line to perform the silent installation or uninstallation of Evernote for Windows.

Evernote Silent Install

With the help of the internet, You can find an Install command for any application. In our case, we have to search the install command for the Evernote Application. After searching, the install command for the Evernote Application is Evernote-10.51.7-win-ddl-ga-3866-10d8cd4f38-setup.exe /AllUsers /S.

After you successfully install Evernote using the install command in your test environment. Now you have to look for the Uninstall command. Refer to the below table for the details.

Install CommandUninstall Command
Evernote-10.51.7-win-ddl-ga-3866-10d8cd4f38-setup.exe /AllUsers /S“%ProgramFiles(x86)%\Evernote\Uninstall Evernote.exe” /AllUsers /S
Evernote Installation Using Intune Table1

Download the updated IntuneWinAppUtil.exe from GitHubRun IntuneWinAppUtil.exe file Run as administrator.

  • Please specify the source folder – Enter the folder that contains your application setup files. (For Example, C:\sources\Evernote)
  • Please specify the setup file – Enter the setup file name (such as setup.exe or setup.msi), for example, Evernote-10.51.7-win-ddl-ga-3866-10d8cd4f38-setup.exe.
  • Specify the output folder – Input the output folder to generate the .intunewin file.
  • Do you want to specify catalog folder – Type N.

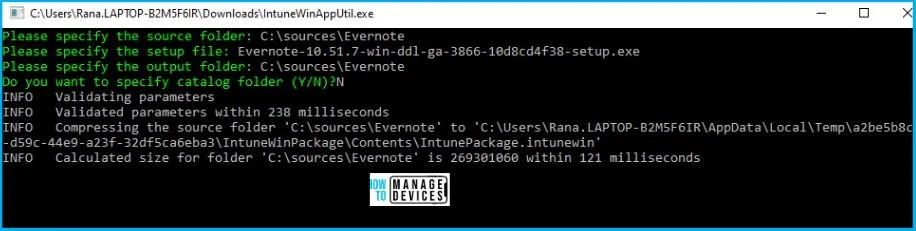

Note! Please wait a few minutes while running the Win32 Content Prep Tool. Once it generates the .intunewin file, the status indicates 100% at the bottom of the command prompt.

Evernote Installation Using Intune Fig.1
Evernote Installation Using Intune Fig.1

Once the process completes, Browse to the output folder (For Example, C:\sources\Evernote) to collect the Intune Win32 app deployment file.

Evernote Installation Using Intune

Follow the steps below to upload the Intunewin file for deploying Evernote to managed devices. Here’s how you can deploy Evernote using Intune Portal.

  • Sign in to the Microsoft Intune admin center https://endpoint.microsoft.com/.
  • Select Apps > All apps > Add, or navigate to Apps > Windows > Windows Apps.
  • On the Select app type pane, select Windows app (Win32) under the Other app types and click Select.
Evernote Installation Using Intune Fig.2
Evernote Installation Using Intune Fig.2

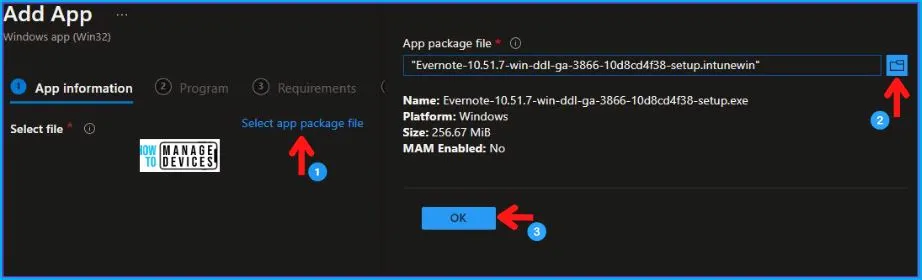

On the Add app pane, click Select app package file. Click the browse button. After that, select the prepared file with the extension .intunewin. Detailed information about the app appears. You can now select OK on the App package file pane when you’re done.

Evernote Installation Using Intune Fig.3
Evernote Installation Using Intune Fig.3

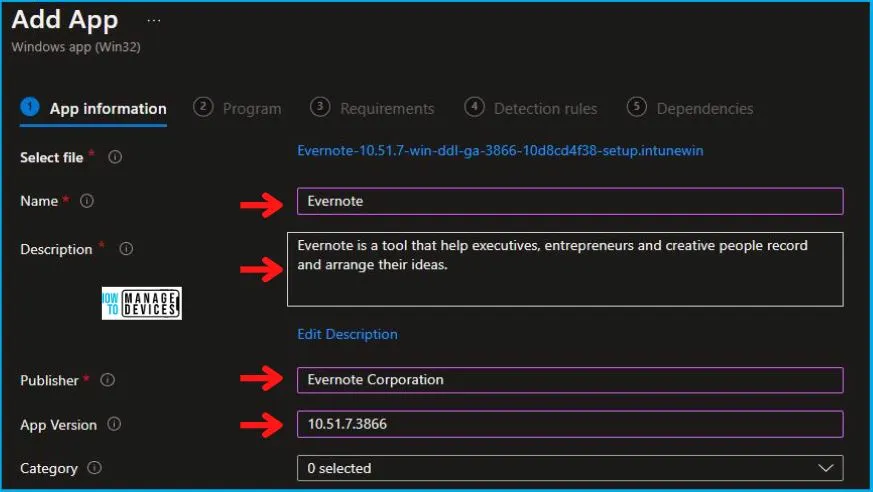

Enter the Name of the Windows App Win32 (For Example, Evernote), and Enter the Description of the Windows App. Enter the Publisher name – Evernote, and You may specify the additional app information here.

Evernote Installation Using Intune Fig.4
Evernote Installation Using Intune Fig.4

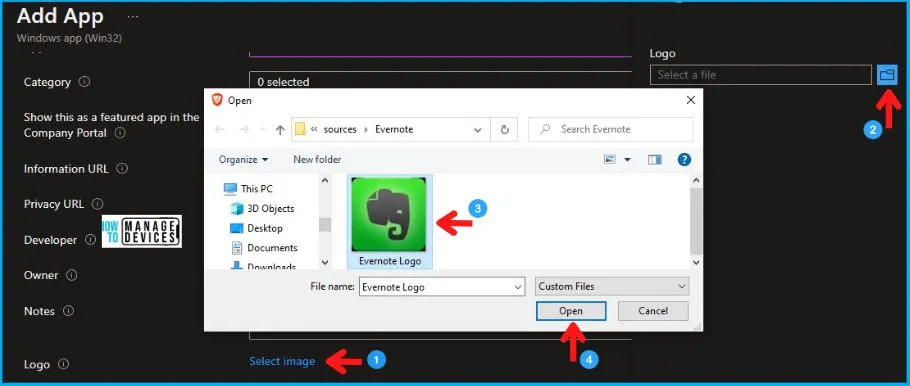

After entering the above details, you will get the option to Upload an icon for the app by scrolling down on the same page. This icon is displayed with the app when users browse the company portal and click Next.

Evernote Installation Using Intune Fig.5
Evernote Installation Using Intune Fig.5

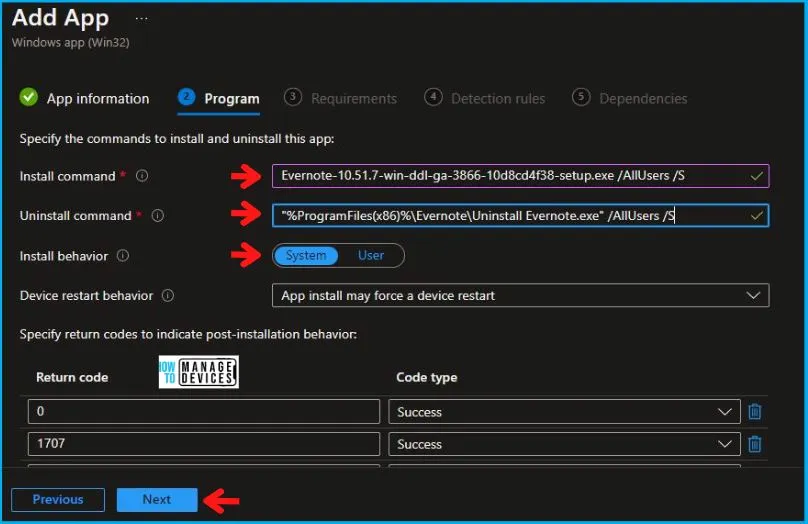

The most important part is to specify the commands. On the Program, configure the app installation and removal commands for the app:

  • Install base: Add the complete installation command line to silent install Evernote. (Evernote-10.51.7-win-ddl-ga-3866-10d8cd4f38-setup.exe /AllUsers /S)
  • Uninstall command: Add the uninstallation command line for Evernote. (“%ProgramFiles(x86)%\Evernote\Uninstall Evernote.exe” /AllUsers /S)
  • Install behavior: Set the install behavior to System.

You can also specify the Device restart behavior and Post-installation behavior. Click Next to continue.

Evernote Installation Using Intune Fig.6
Evernote Installation Using Intune Fig.6

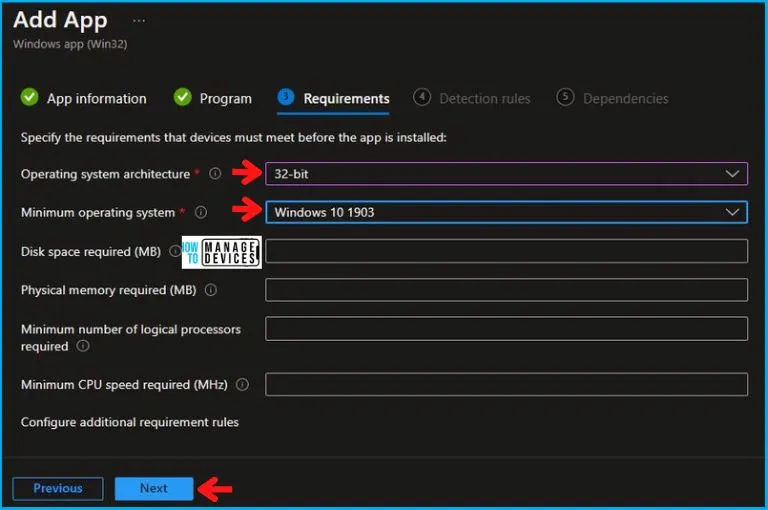

On the Requirements page, specify the mandatory requirements that devices must meet before installing the update and click Next.

  • Operating system architecture: Choose the architectures needed to install Evernote.
  • Minimum operating system: Select the minimum operating system needed to install Evernote.

There are some built-in and custom requirements rules when creating your Win32 application. Explore Intune Win32 App Requirement Rules.

Evernote Installation Using Intune Fig.7
Evernote Installation Using Intune Fig.7

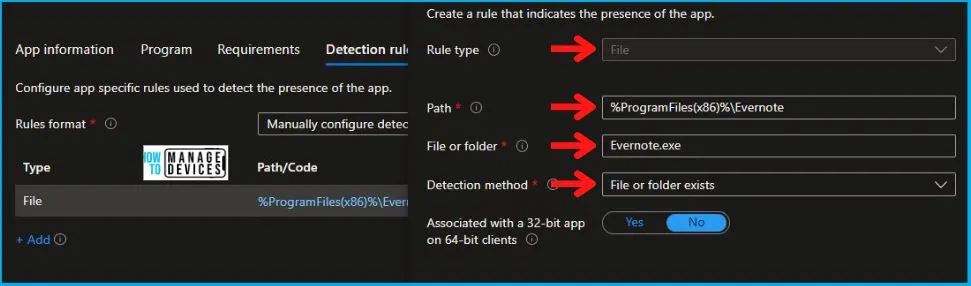

On the Detection rules pane, configure the rules to detect the presence of the app. You can choose to add multiple rules. Here I selected the Manually configure detection rules format. Click on Add button, and A popup will appear showing the Detection rule, select File System.

After this, you have to check for the Detection Method. Here we try to use the File type for the detection method. We must go to a particular file location and select a certain file.

  • Select File in the Rule Type.
  • Copy the path in the Path box
    • %Program Files(x86)%\Evernote or C:\Program Files (x86)\Evernote
    • Look for the file called “Evernote.exe

The following table provides clearer options for detecting an exe (Evernote.exe) file.

Setting TypePath/HiveFile Name/Key
File SystemC:\Program Files (x86)\EvernoteEvernote
Evernote Installation Using Intune Table2

Check the details from the above table and enter as shown below carefully.

Evernote Installation Using Intune Fig.8
Evernote Installation Using Intune Fig.8

You can also specify app dependencies where the applications must be installed before your Win32 app can be installed. Also, in the scope tag section, you shall get an option to Configure scope tags for this Windows App Win32 application.

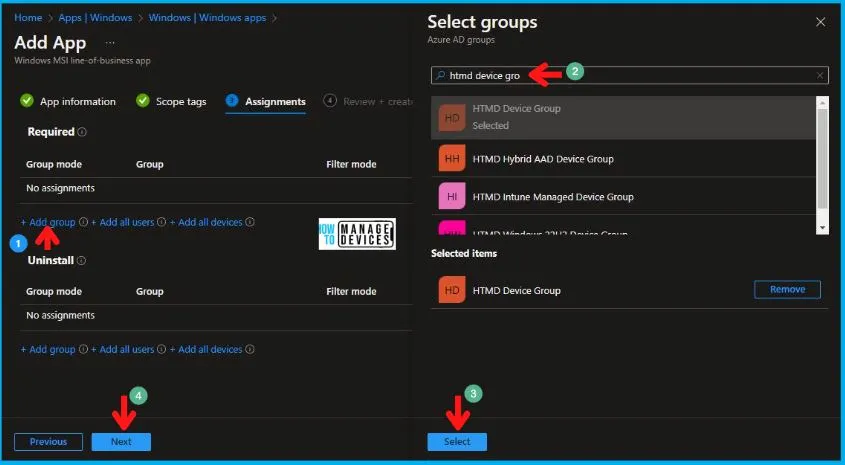

Under Assignments, In Included groups, click Add groups and then choose Select groups to include one or more groups to which you want to deploy the Windows Update. Click Next to continue.

Evernote Installation Using Intune Fig.9
Evernote Installation Using Intune Fig.9

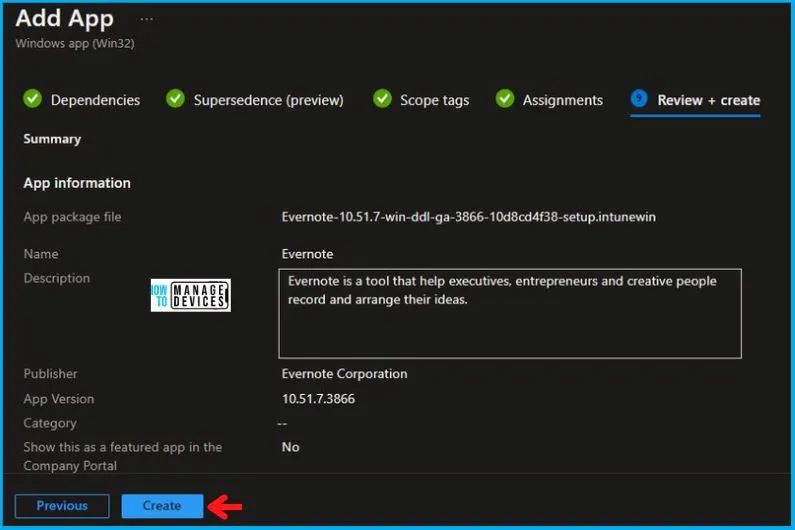

Now you will see all the details you provided during the application creation process. Review your settings and select Create to add the app to Intune.

Evernote Installation Using Intune Fig.10
Evernote Installation Using Intune Fig.10

Once you proceed to create, you will see the status Uploading is in progress, If you are thinking about how much time will it take to complete the upload? It depends on the size of the application and the speed of internet connectivity.

Please wait some time to complete the upload process, and you can check the progress by clicking on the Notification icon. Once the intune package is uploaded and finished, you will get the status “Upload finished.”

Intune Company Portal End Users Experience

Intune will deliver targeted applications to your groups when the devices check in with the service that applies to them.

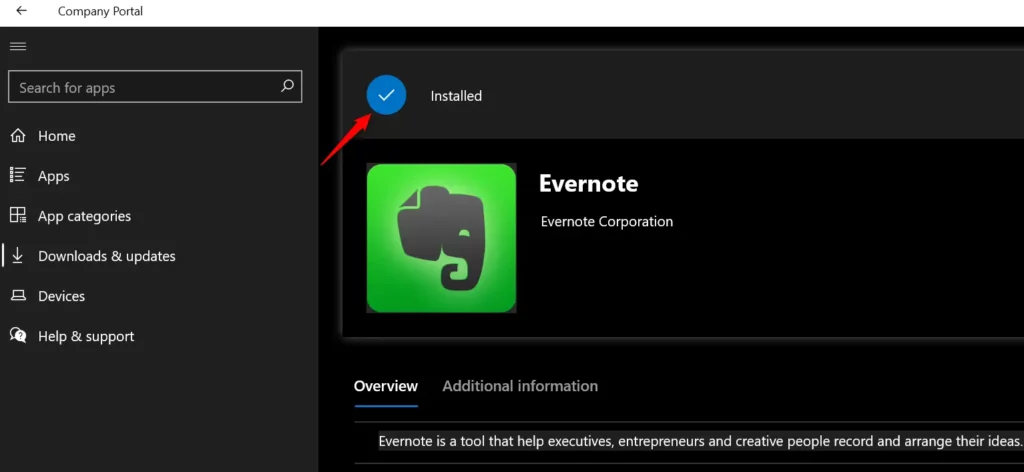

On the client machine, In the Company Portal, You can click on the apps to track the details and check the progress. The application Evernote was successfully installed.

Evernote Installation Using Intune Fig.11
Evernote Installation Using Intune Fig.11

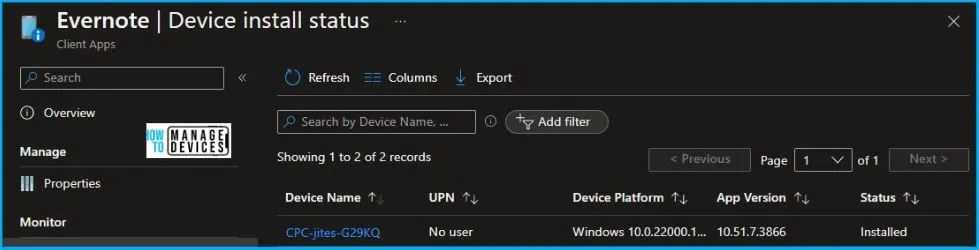

To monitor the application installation from Intune Portal, select the application, and here you can check the device and user check-in status. If you click on Device install status, additional details are displayed.

Evernote Installation Using Intune Fig.12
Evernote Installation Using Intune Fig.12

Track Evernote Win32 App Deployment

Once the application installation starts, the “Detection rule” will be evaluated. Checks were performed against the rules configured and the app “Install command” will be triggered.

You can track the details logged at IntuneManagementExtension.log located C:\ProgramData\Microsoft\IntuneManagementExtension\Log. You track the application activity in client devices. You can get through an excellent article on Intune Win32 App Issues Troubleshooting for more details.

Where is the folder where Intune downloads the applications before it installs on a Windows device? Intune cache folder location, Below are the 3 Intune Management Extension Agent working folders.

  • Incoming
  • Staging
  • Staged

Let’s learn Intune Win32 App Troubleshooting Client-Side Process Flow. You can look at the Level 3 deep dive troubleshooting Intune Management Extension (IME) Level 3 Troubleshooting Guide.
