What is New in MECM SCCM 1910 Features a Walkthrough

Let’s discuss and walk through the new features of the SCCM 1910 (SCCM 1910 Features) production version. I have explained and shown most of these new features in the video tutorial.

SCCM 1910 = MECM 1910 (to know more, read article ) Microsoft Endpoint Configuration Manager (MECM)

NOTE! – SCCM or MECM 1910 production version is NOT the baseline version! The latest SCCM CB baseline version is 1902.

Why Upgrade Configuration Manager ConfigMgr

Wow! Stay up to date! Stay Current! What?

Patch My PC
  • Do you want full support (OSD?) for Windows 10 1909? Support Windows 10 as a client with SCCM 1910 version.
  • Do you want to have issues with SCCM 1906 (Refer to SCCM 1906 known issues list)? All these issues are fixed with ConfigMgr 1910

Prerequisite SCCM 1910 Production Version?

The SCCM 1910 production version released is in the Slow Ring. The MEMCM 1910 won’t be available automatically in your SCCM console. I shall update here once Microsoft releases the 1910 version broadly.

So, the 1910 production version will be available within the SCCM console after you run the PowerShell command and your SCCM site meet the following conditions:

  1. If you want to get into SCCM 1910 FAST ring NOW – Run the PowerShell command (SCCM 1910 is Generally Available)
  2. If your SCCM CB version is SCCM 1810 or SCCM 1902, or SCCM 1906 (Read More details about SCCM Life Cycle)
  3. If your SCCM CB version has an online Service Connection Point

Note – You don’t need to run the PowerShell script when Microsoft releases a SLOW ring version of SCCM 1906 at a later stage.

What is New in MECM SCCM 1910 Features a Walkthrough - Fig.1
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.1

Time to Upgrade to SCCM 1910 (meh MECM 1910)?

Every organization might have its own SCCM CB infra-update strategy. I have seen organizations decide to update SCCM after three (3) months of release, while some might wait for the first rollup update. It’s better to stick with your organizational practice for SCCM upgrades.

Adaptiva

I have written a post to help build the SCCM infra-update strategy. I recommend reading the post and commenting on whether you agree with this approach or not. More Details SCCM Infra Upgrade strategy.

What is New in MECM SCCM 1910 Features a Walkthrough - Fig.2
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.2

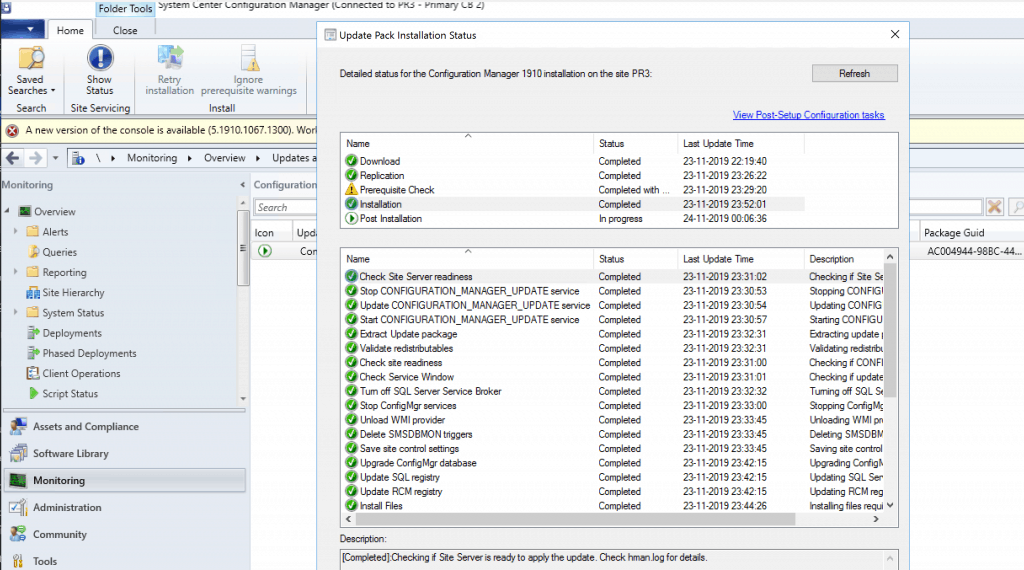

SCCM 1910 Upgrade Guide

I have already published a more detailed guide on MECM (Microsoft Endpoint Configuration Manager) or ConfigMgr 1910.

More details are available in “SCCM 1910 Update Step by Step Guide.”

Once the 1910 upgrade is completed successfully, the following features are enabled for the device management scenarios.

What is New in MECM SCCM 1910 Features a Walkthrough – Video

BitLocker Management SCCM MBAM

Finally, MBAM is part of the SCCM 1910 production version. MBAM shall help you perform Bitlocker Management. The following are the high-level options available in the 1910 version—more details on Improvements to BitLocker management.

Setup

  • BitLocker Drive Encryption Settings
    • Choose the Encryption and Cipher Strength – Enabled
      • Select the Encryption method – AES 128-bit (default)
    • Choose drive encryption and cypher strength (Windows 10) – Enabled
      • Operating System Drives – AES-CBC 128-bit/265-bit
      • Fixed Data Drives – XTS-AES 128-bit/256-bit
      • Removable Drives – XTS-AES 128-bit/265-bit

Operating System Drive

  • OS Drive Management Settings
  • Operating System Drive Encryption Settings – Enabled
    • Allow BitLocker without a compatible TPM (Requires a Password) – Allow
    • Select Protector for Operating System Drive
      • TPM Only
      • TPM and PIN
    • Configure minimum PIN length for startup – 4

Client Management

  • Client Management Settings
  • Configure BitLocker Management Services – Enabled
    • Select Bitlocker Recovery Information to store
      • Recovery Password only
      • Recovery Password and key package
    • Enter client checking status frequency in (minutes) – 90

\Assets and Compliance\Overview\Endpoint Protection\BitLocker Management

What is New in MECM SCCM 1910 Features a Walkthrough - Fig.3
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.3

Deploy Microsoft Edge Browser

With the 1910 version, you can deploy the New Microsoft Edge browser using Endpoint Manager SCCM.

The SCCM team created an out-of-the-box experience for creating an SCCM application for a new edge browser (Chrome-based) deployment (Deploy Microsoft Edge Browser).

I have a separate post explaining the end-to-end Microsoft Edge update process with MECM. For more details, see “Deploy Microsoft Edge Browser with SCCM Endpoint Manager.”

What is New in MECM SCCM 1910 Features a Walkthrough - Fig.4
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.4

Microsoft Connected Cache Options

Microsoft Connected Cache (MCC) service is an on-prem delivery optimization solution announced in Ignite 2019. You can use SCCM or MECM DP as it’s connected to the Cache content location. More details are available in “SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues.”

  • Server Side Config from – \Administration\Overview\Distribution Points
  • Client Side MCC configuration from > \Administration\Overview\Client Settings
What is New in MECM SCCM 1910 Features a Walkthrough - Fig.5
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.5

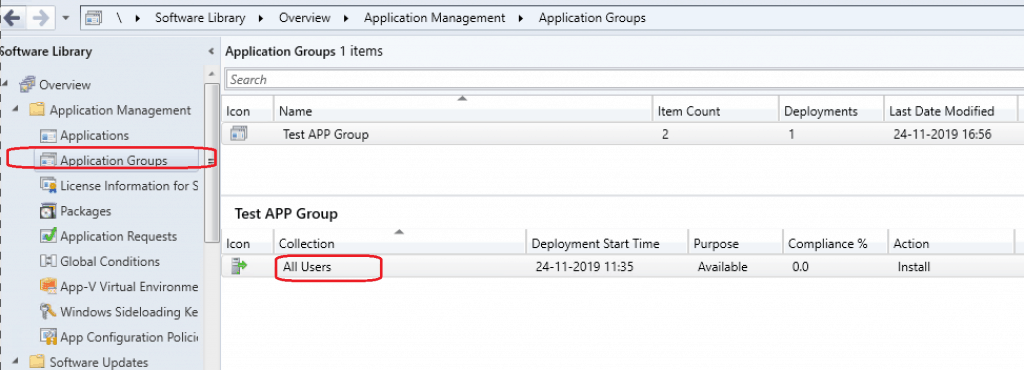

Application Groups – User Deployment

With the latest MECM (SCCM) version, you can create a group of applications and send that to a user or device collection as a single deployment.

You can also perform the sequencing of the apps in the group so that the SCCM client installs them in a specific order.

In 1910, you had the following improvements:

  • Users can Uninstall the app group in the Software Center.
  • You can deploy an app group to a user collection.

Try this out : \Software Library\Overview\Application Management\Application Groups.

What is New in MECM SCCM 1910 Features a Walkthrough - Fig.6
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.6

Copy Paste TS Condition

With the 1910 version of SCCM, you will get a new option to Copy and paste task sequence conditions. This option would be useful to reuse the requirements from one task sequence step to another.

You can now copy and paste conditions in the task sequence editor.

Try this out \Software Library\Overview\Operating Systems\Task Sequences

What is New in MECM SCCM 1910 Features a Walkthrough - Fig.7
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.7

There are also improvements in Task Sequence search options. This search option lets you more quickly locate steps in the task sequence.

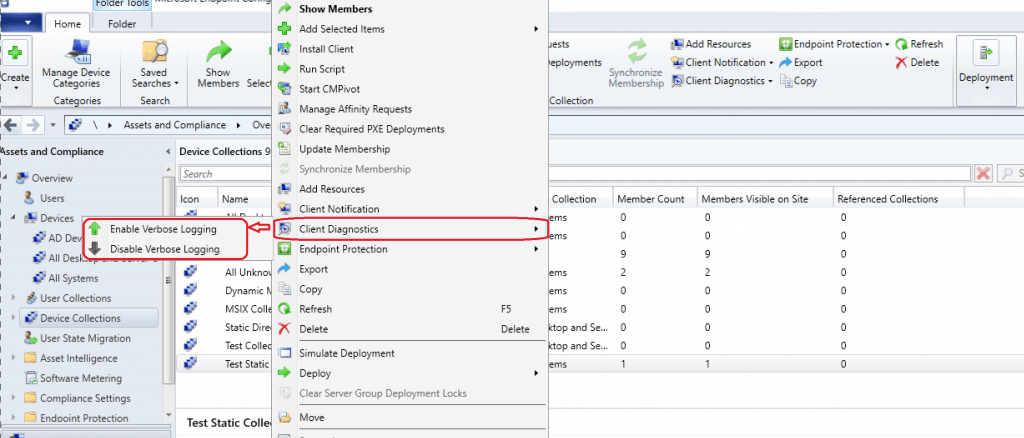

1910 New Right Click Option Client Diagnostics

1910 version of SCCM introduced a new device action called Client Diagnostics. You can include the following steps:

  • Enable verbose logging: Change the global log level for the CCM component to verbose, and enable debug logging.
  • Disable verbose logging: Change the international log level to default, and disable debug logging.
  • In the SCCM console, go to the Assets and Compliance workspace, select the Devices node, and choose a target device.
  • In the ribbon, on the Home tab, in the Device group, select Client Diagnostics. Choose one of the available actions.
    • Enable verbose logging
    • Disable verbose logging

Track the status of the task client’s diagnostic task in the diagnostics.log on the client.

Try this out \Assets and Compliance\Overview\Device Collections

What is New in MECM SCCM 1910 Features a Walkthrough - Fig.8
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.8

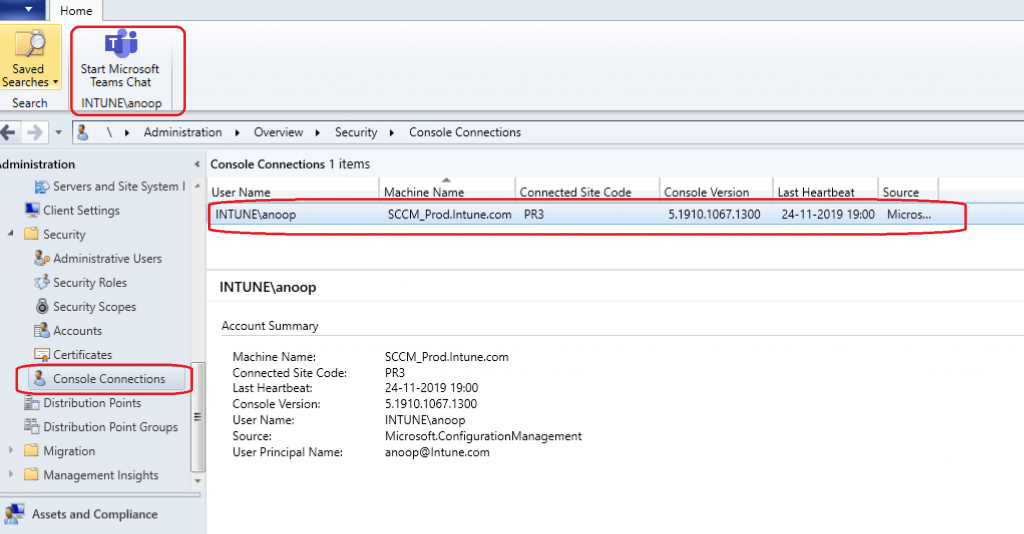

Teams Chat Option MECM 1910 Console Connections

With the Teams chat option, you can chat with console users connected to the SCCM site instantly. Let me know how useful this feature is for SCCM admins. I don’t recommend installing Teams on the SCCM primary server to use this feature.

I think Teams chat options will be helpful for a scenario where all your admins use Windows 10 remote console. View active consoles and message administrators through Console Connections.

Try this out from \Administration\Overview\Security\Console Connections.

What is New in MECM SCCM 1910 Features a Walkthrough - Fig.9
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.9

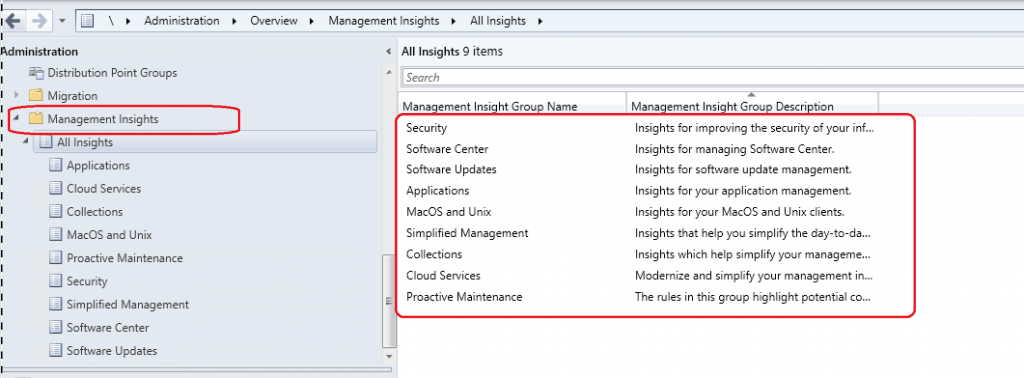

Management Insights Health Checks

I don’t see many enhancements in the 1910 version of SCCM/MECM! For more details, “SCCM Management Insights – Healthy SCCM Infra.”

SCCM Management Insights will help you gain valuable insights into the current state of the SCCM environment. The Management insights are based on analyzing data in the site database.

Try this out from \Administration\Overview\Management Insights\All Insights.

What is New in MECM SCCM 1910 Features a Walkthrough - Fig.10
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.10

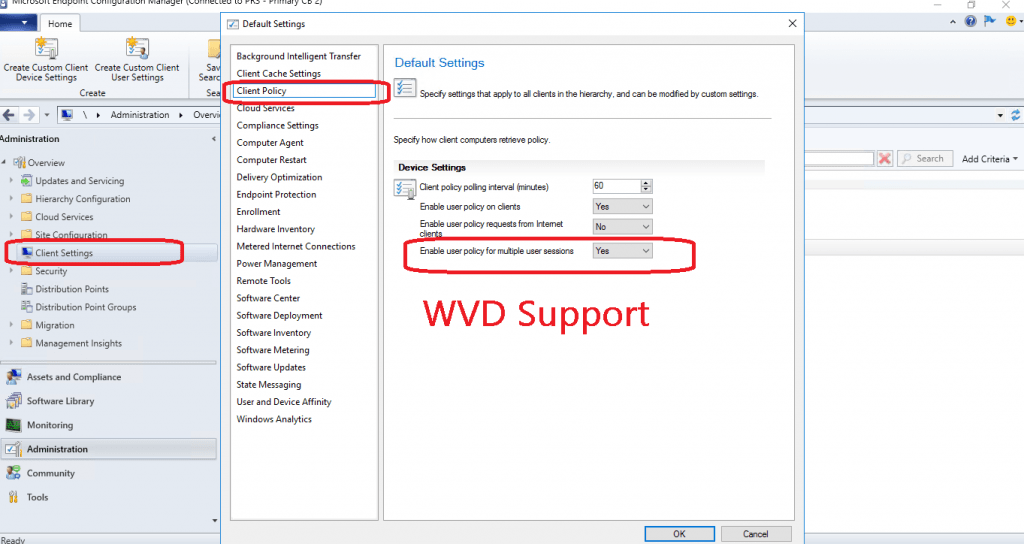

WVD Support Enhancements

With the 1910 version, you can see options to enable the user policy for Windows 10 multi-session concurrent users. Intune support for this scenario is not announced.

I have a details post about SCCM support for WVD and Intune support for WVD. More details are available in “WVD Windows 10 Multi-Session Intune Hybrid Azure AD Support.”

  • Client Settings
    • Client Policy
      • Enable user policy for multiple user sessions –> YES
What is New in MECM SCCM 1910 Features a Walkthrough - Fig.11
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.11

Custom Compliance PoliciesSCCM 1910 Features

SCCM is a bit ahead of Intune here. Here is the option to create custom compliance policies from SCCM. Does your organization need to check a special condition on the device before providing access to corp resources?

This option to have a custom compliance policy will help you. You can try this out from:

  • \Assets and Compliance\Overview\Compliance Settings\Compliance Policies
    • Add Rules
      • New Condition
        • Include Configured baseline in compliance policy assessment ==> TRUE
What is New in MECM SCCM 1910 Features a Walkthrough - Fig.12
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.12

SCCM Real-Time Management?

CMPivot is the real-time management solution that the latest version of SCCM is equipped with! I explained the architecture of CMPivot in my previous blog post. For more details, see “CMPivot Fast Channel Making SCCM Fast.”

With the 1910 version, Microsoft improved the performance of CMPivot without much impact on CPU workload. With these optimizations, Microsoft claims that you can now collect gigabytes of client data in real time.

For more details – https://docs.microsoft.com/en-us/sccm/core/servers/manage/cmpivot#bkmk_optimization

Other improvements with CMPivot 1910 version are:

What is New in MECM SCCM 1910 Features a Walkthrough - Fig.13
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.13

Features didn’t make it to MECM 1910

  • Orchestration Groups – New Server patching option introduced in 1907 technical preview version didn’t make to 1910/ More details available “SCCM Orchestration Group Setup Step by Step Guide for Server Patching.”
  • The tenant Attach/Cloud Console feature, announced in Microsoft Ignite 2019, is not included in SCCM’s latest preview and production versions 1910.
  • Extend Migrate SCCM To Azure—The ExtendMigrateToAzure.exe tool Extends or Migrates SCCM infra to Azure. This tool didn’t make it to the MECM 1910 production version.
  • Community Hub Updates are minimal in the production version. We will await Microsoft’s plans and priorities for Community Hub. More information about ConfigMgr Community Hub is in “SCCM Community Hub—Scripts Reports and Documentation.”
What is New in MECM SCCM 1910 Features a Walkthrough - Fig.14
What is New in MECM SCCM 1910 Features a Walkthrough – Fig.14

Resources – SCCM 1910 Features

We are on WhatsApp. To get the latest step-by-step guides and news updates, Join our Channel. Click here –HTMD WhatsApp.

Author

Anoop C Nair is Microsoft MVP! He is a Device Management Admin with more than 20 years of experience (calculation done in 2021) in IT. He is a Blogger, Speaker, and Local User Group HTMD Community leader. His main focus is on Device Management technologies like SCCM 2012, Current Branch, and Intune. He writes about ConfigMgr, Windows 11, Windows 10, Azure AD, Microsoft Intune, Windows 365, AVD, etc.
